EV4 & CHT

EV4 Vision System

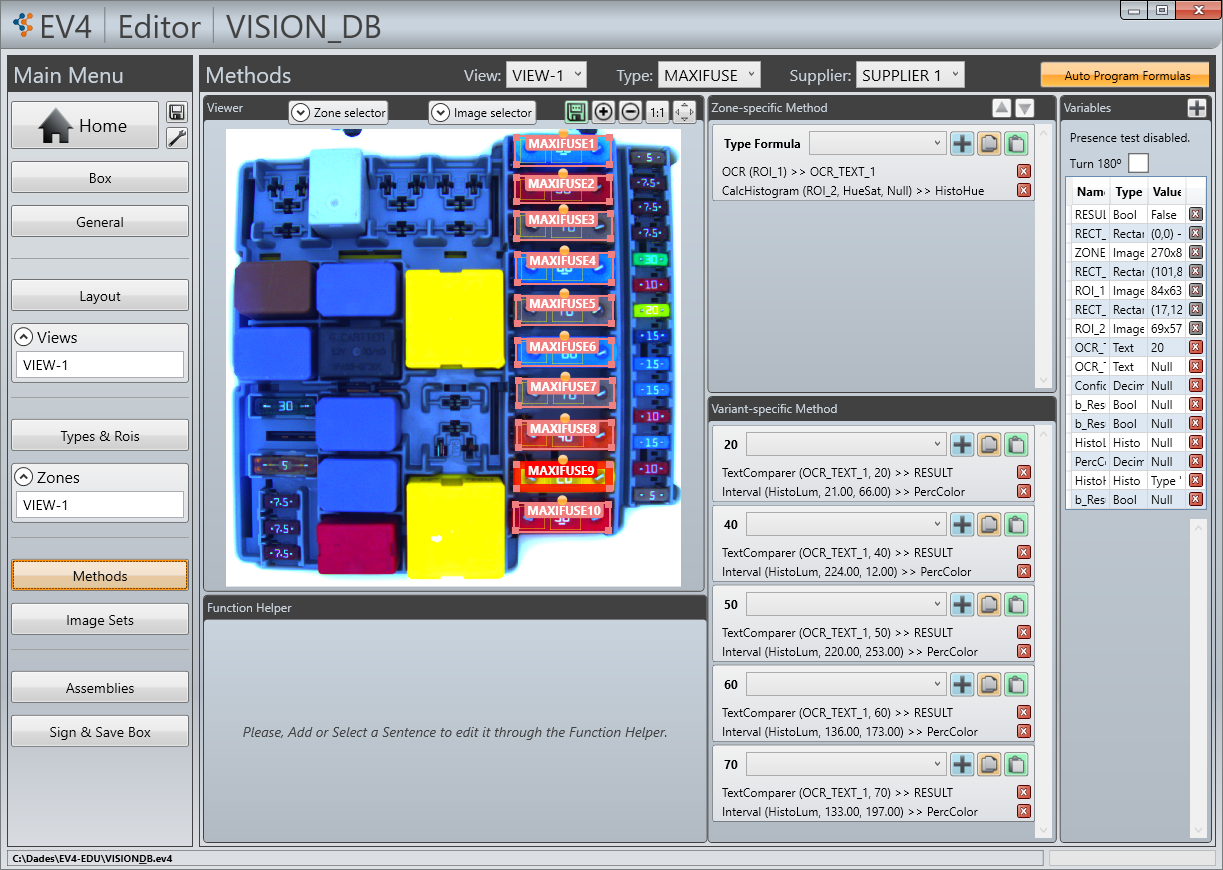

Advanced vision technology for fuse box inspection. EV4 identifies components via direct reference or KSK wiring and uses multi-illumination systems for precise image analysis. All test data is recorded for full traceability and review. In the software interface, every detected deviation is clearly highlighted, allowing operators to see exactly what is incorrect and where corrective action is needed.

The additional CHT accessory measures component height with exceptional precision in minimal test time.

POWERFUL

Recognizes characters, shapes, colors, deformations, and dimensions with high reliability through advanced image analysis and OCR algorithms.

FLEXIBLE

Enables analysis under varying physical parameters by supporting multiple illumination systems, including RGB lighting to reduce shadows and enhance feature detection

AUTOMATED

Seamlessly integrates into automated production lines, enabling continuous and reliable testing operations to proceed without operator intervention at any stage.

Component HEight TEst (CHT)

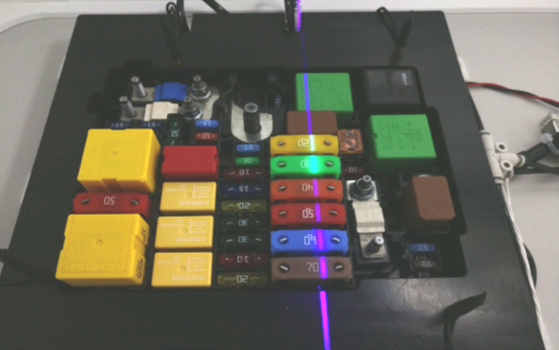

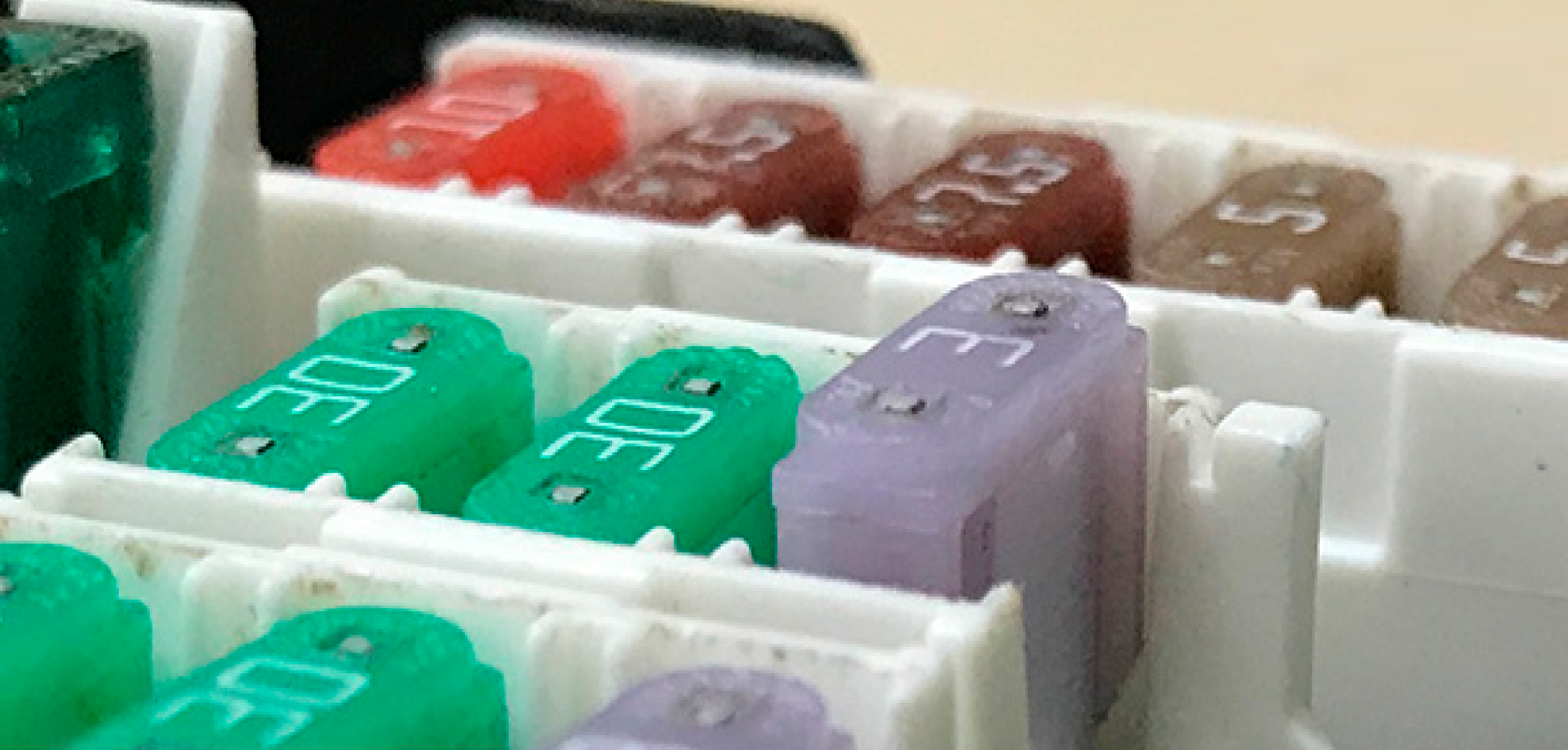

CHT extends the EV4 system by providing laser-based 3D measurement of fuse box components, ensuring precise verification of insertion depth and alignment.

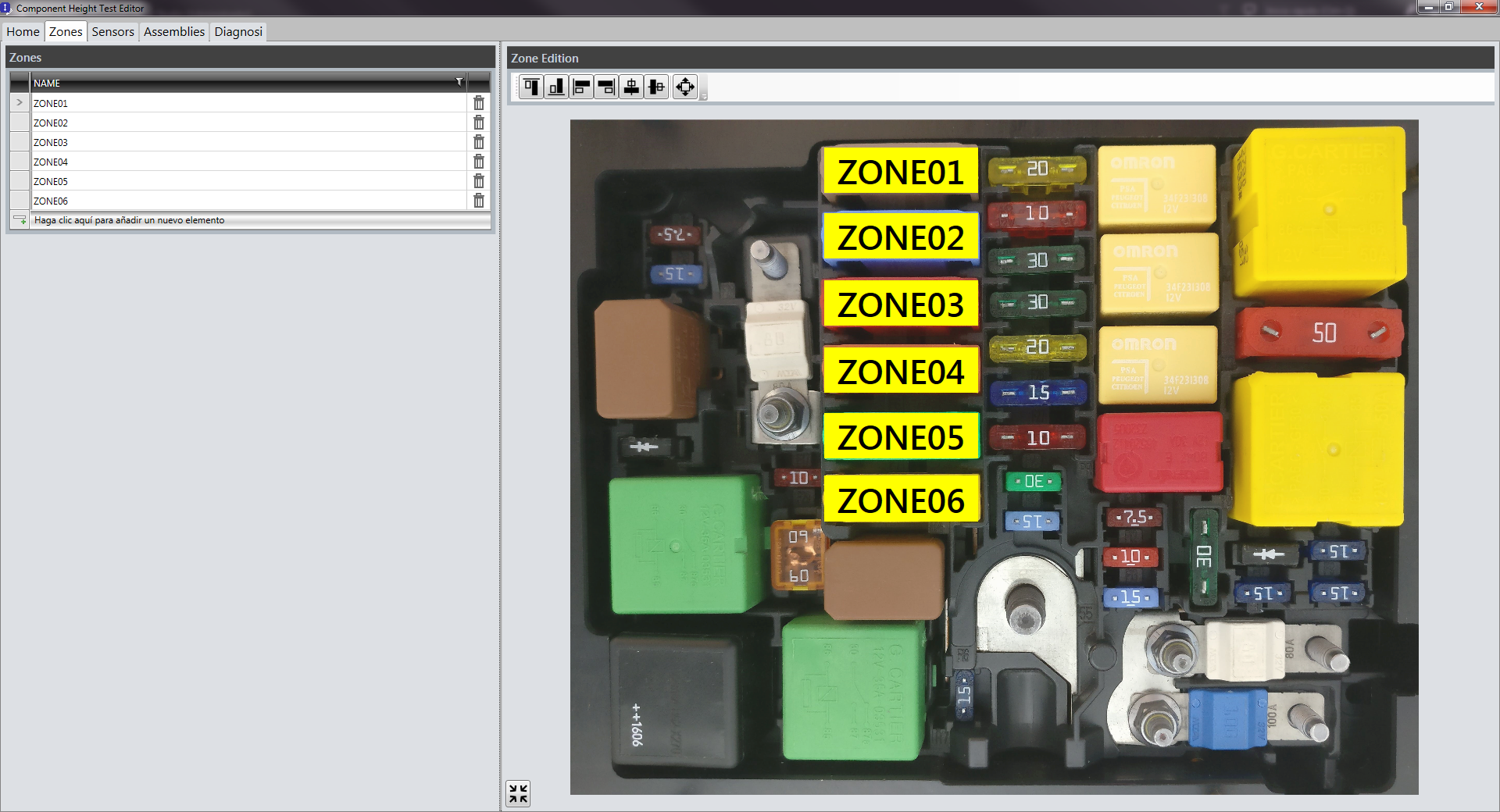

The compact hardware adapts to any fuse box size and can be used as a standalone solution or in combination with the EV4 Vision system. The graphic software environment offers dedicated applications for editing and testing, supports fast calibration, and links all measurement data with visual inspection results.

BENEFITS

Provides high-throughput inspection, completing the full test cycle for a medium size box in approximately 2 seconds to support demanding production environments.

Measures component height with precision better than 0.01 mm, supporting applications that require exact dimensional verification.

Fully integrates with the EV4 viewer environment for streamlined operation and data management.
