AC/DC High Voltage Tester

High Voltage Testing for maximum safety

The HK InteCAT HV System redefines what’s possible in automated high-voltage testing.
Designed for applications up to 6 kV DC and 4.2 kV AC, it delivers the power and precision
required for even the most demanding insulation and dielectric tests, far beyond what conventional
systems offer.

This industry-leading voltage capability sets the HK InteCAT HV on top, providing exceptional
flexibility for manufacturers who need both safety and accuracy in one robust EtherCAT-based
platform.

Technical specifications

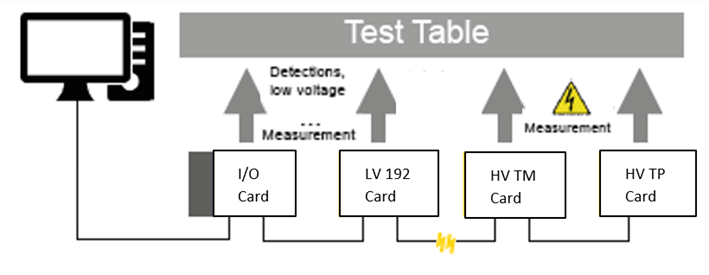

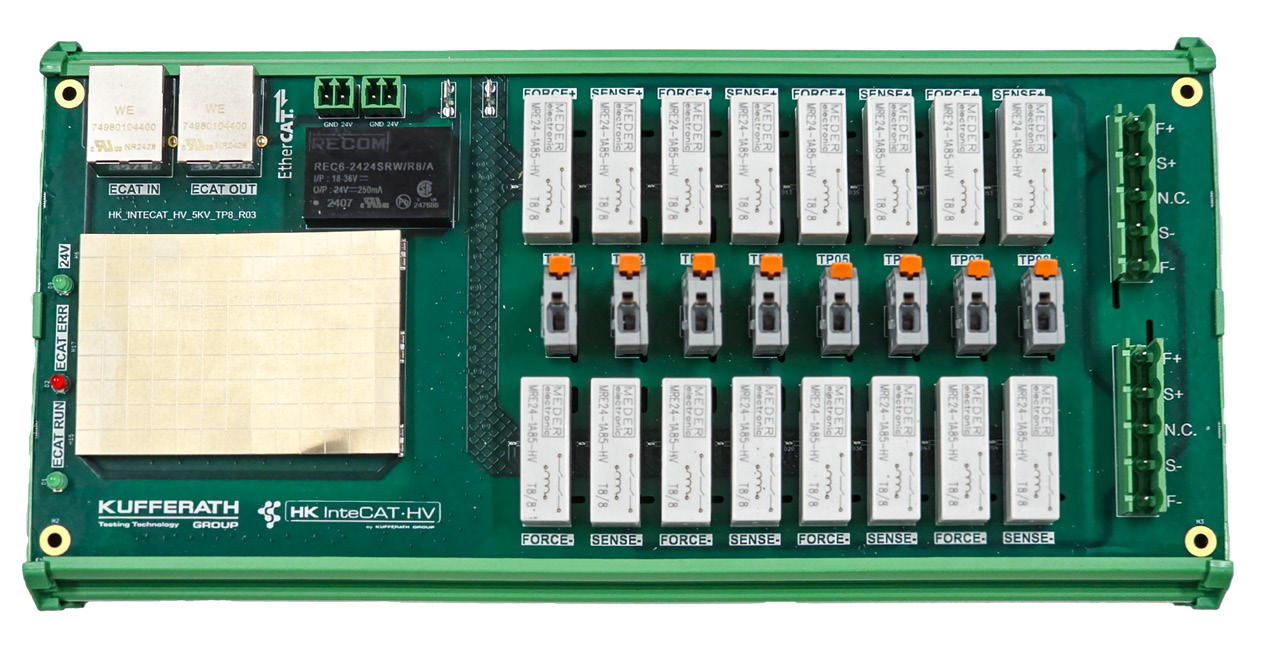

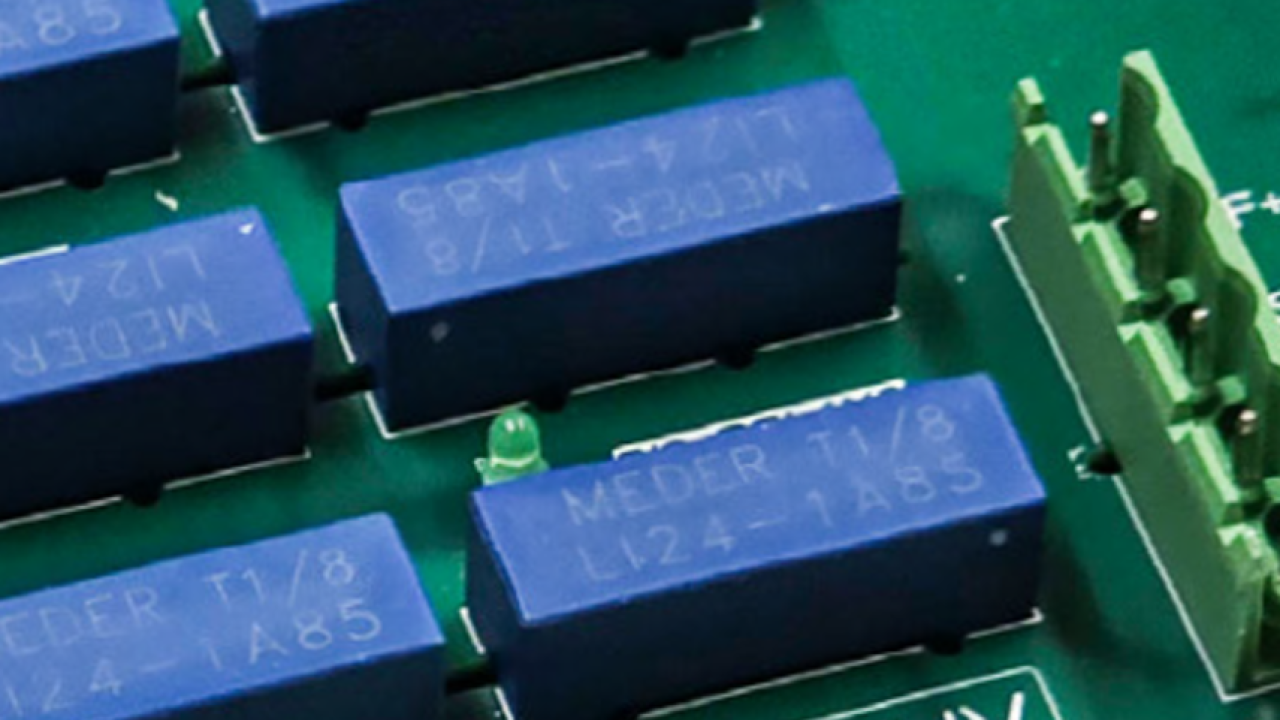

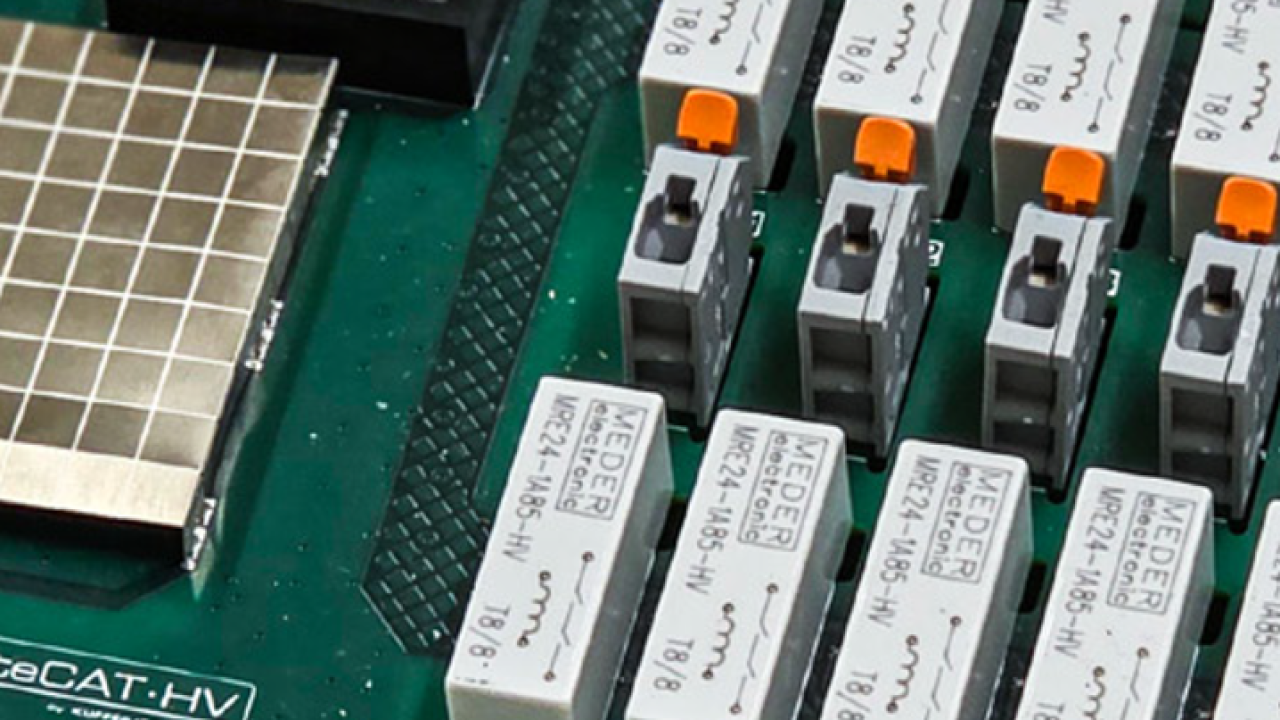

HV Test Point Card

• 8 HV Test Points per card
• Maximum voltage: 6 kV DC and 4.2 kV AC
• 4-wire Kelvin measurement for optimal precision

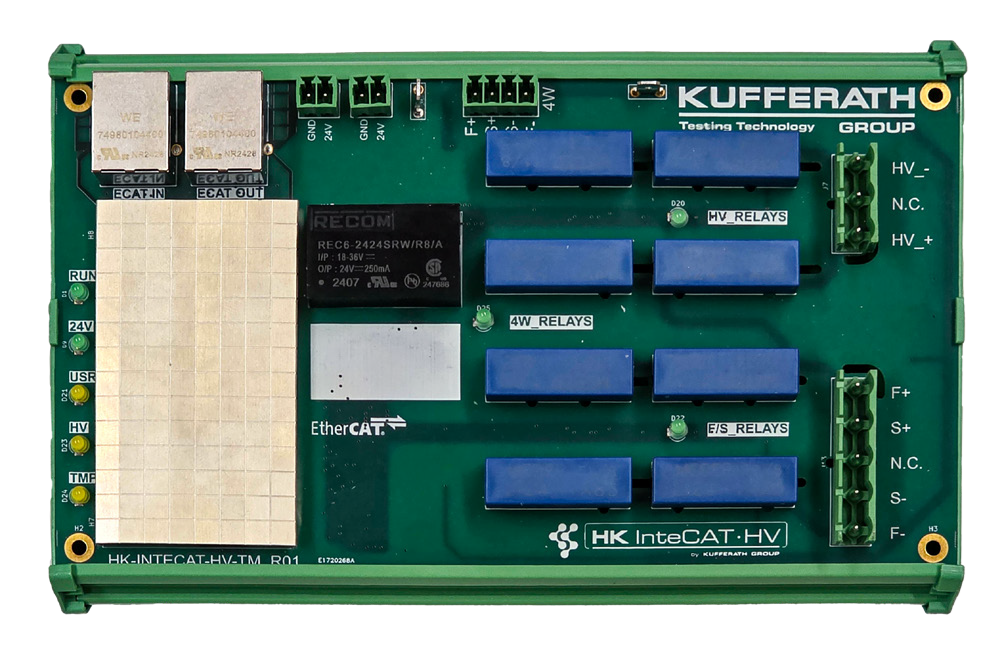

Controller Module

• External micro-ohmmeter interface for ultra-precise LV measurements

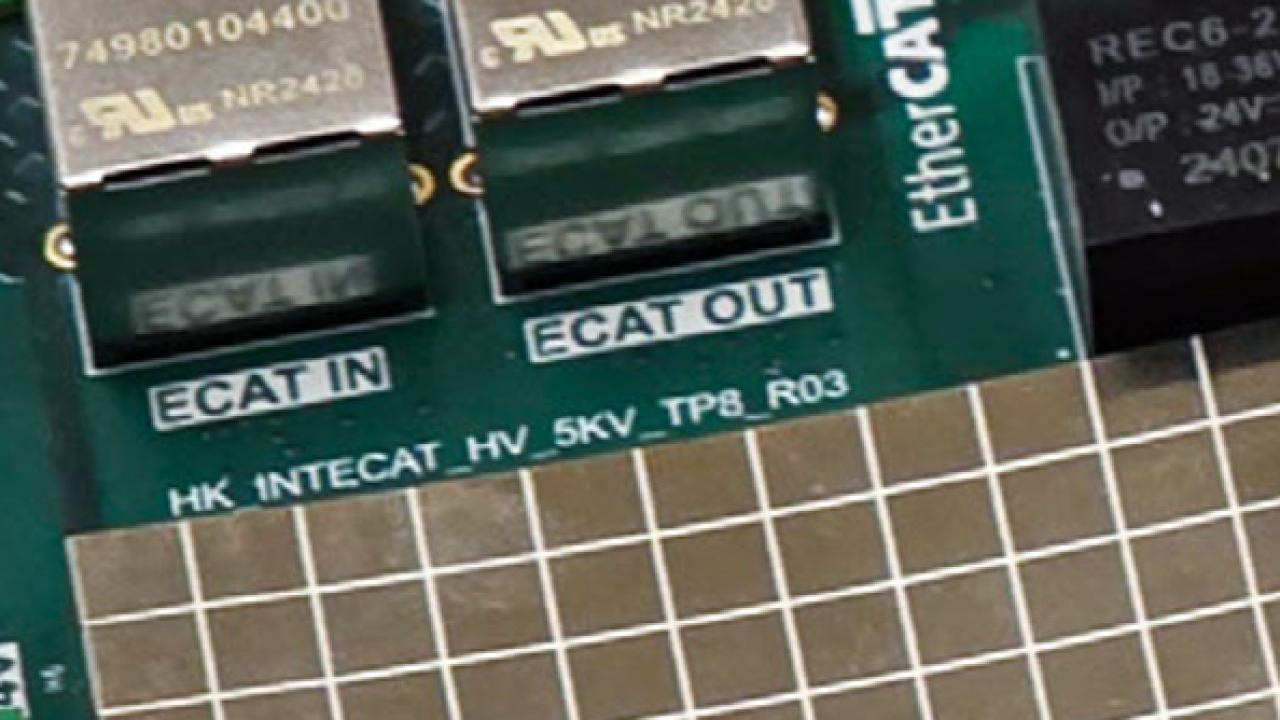

• Same EtherCAT-based communication and diagnostics as LV modules



Why InteCAT

• 6 kV capability: unmatched high-voltage range that outperforms standard testers
• Unified platform: LV and HV systems operate on the same EtherCAT backbone
• Scalable & modular: expand your setup easily with additional boards
• Timeefficient: fast test cycles and real-time diagnostics
• Userfriendly: plug-and-play configuration, easy maintenance
• Reliable & proven: industrial-grade design for demanding test environments

Simple

Up to 6 kV DC and 4.2 kV AC test capability
Seamless EtherCAT communication: no IP configuration, no complex wiring

Flexible

Mixable with LV System: combine both systems to reduce total HV test points
Parallel measurement: simultaneous cycle-by-cycle data acquisition across all boards

Compatible

Distributed system: HV cards can be placed apart for maximum flexibility
Full compatibility: easily connects with any InteCAT board (IO, LV, TM…)
