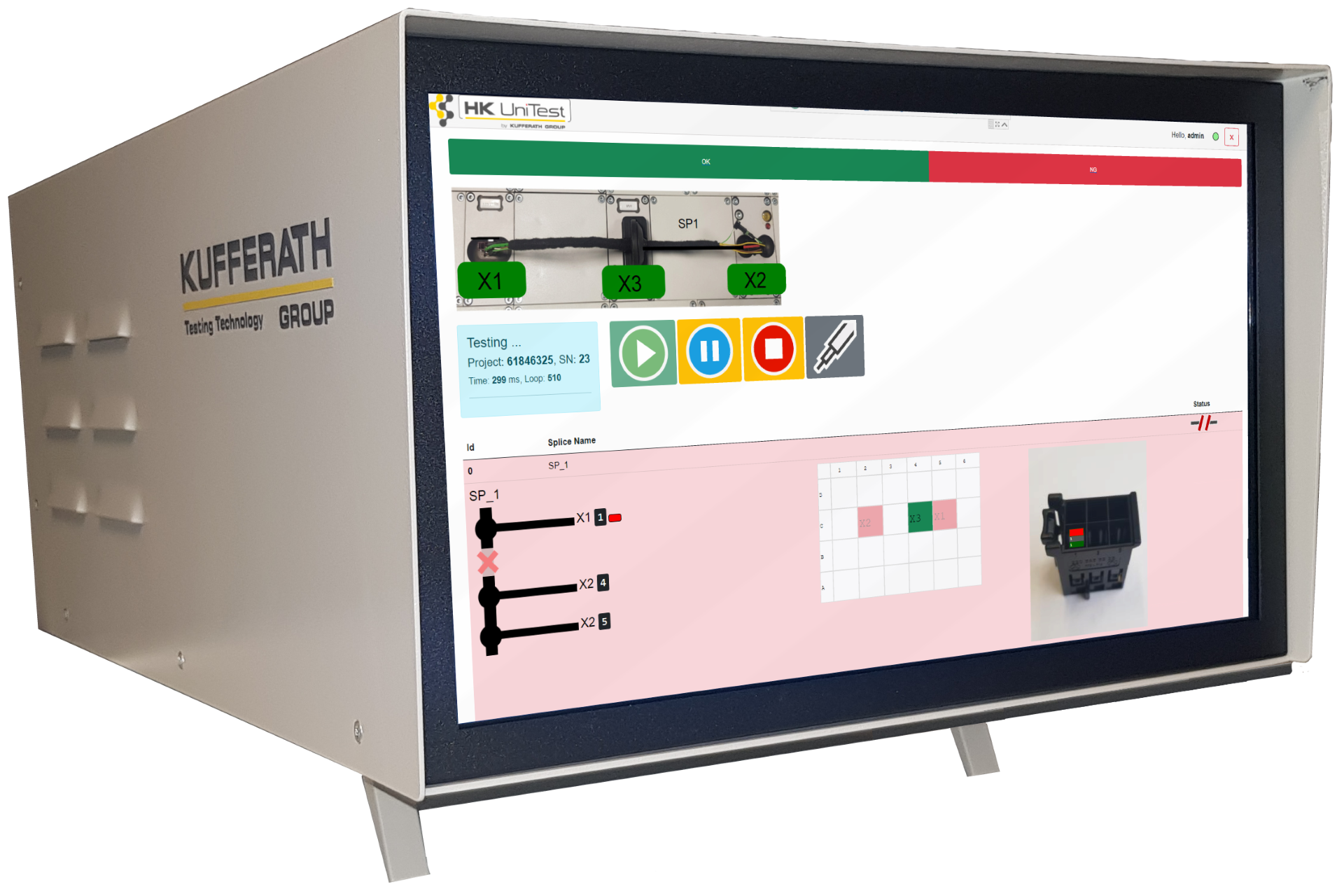

All-in-one Tester



LV-TC-X-512-15V 2

LV-TC-X-512

IoT-Ready
Windows-based PC with an integrated 12” touch
screen in full HD
Connections:
   Wi-Fi, LAN, USB
   Pin Probe, Programmable I/Os

Visual User Experience
Connector images, statistics, 2D-Map,
Interactive Harness Drawing
Graphic Label Editor

TECHNICAL SPECIFICATIONS

LV Measurement:
1V -15V; Adjustable
1 mA - 50mA Adjustable in current control
mode

Pin Probe
   ESD Protected
   Safe, passive high-impedance input

Test Points
512 test points (easily expandable) with ESD
and overcurrent protection

I/Os

Inputs:
   8x NPN 24V IN
   Overvoltage, ESD protection
Outputs:
   8x NPN 24V OUT
   200mA current limit
   ESD, Overvoltage, Overcurrent, reverse
   polarity,
   overtemperature protection
