EV4

EV4 TEST

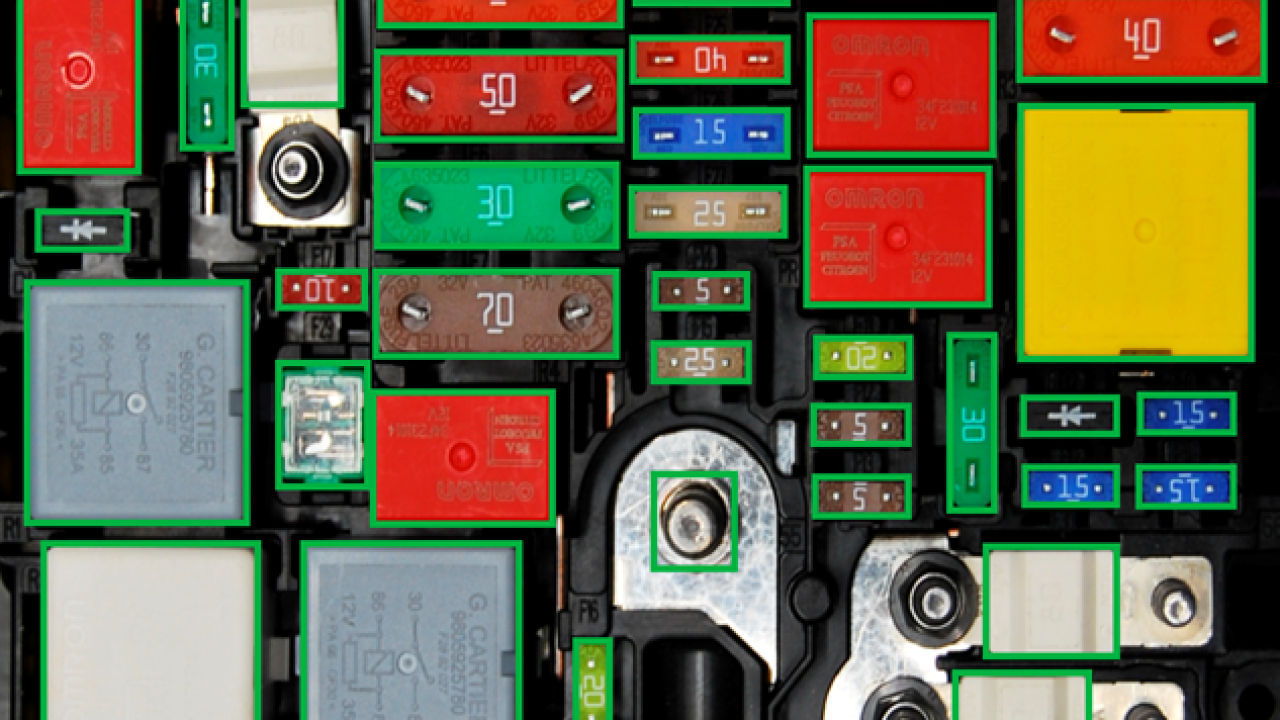

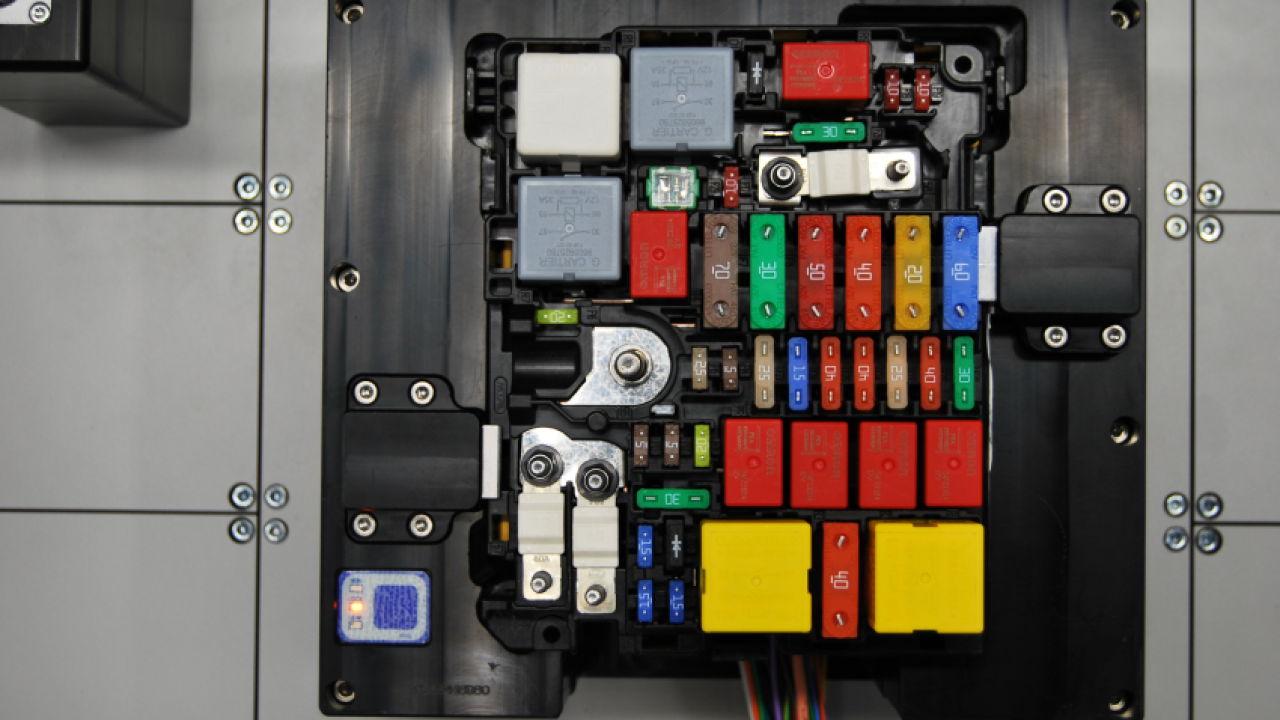

EV4 is prepared to identify fuse boxes by direct
reference or KSK wiring, also supports different
illumination systems to carry out analyses of the
image with different physical parameters.


Register of the tests done with its parameters,
permitting to check the acquired images again.


The system can be integrated in automatic lines,
permitting test without personal intervention.


EV4 has an accessory to check the height of the
components, obtaining very high precision in a
very short time of test.





MAIN FEATURES
MAIN FEATURES
  • Powerful identification methods of characters
    OCR, shapes, color classifications,
    deformations and dimensions.
  • Supports different illumination systems to
    carry out analyses with different physical
    parameters.
  • The system can be integrated in automatic
    lines, permitting test without personal
    intervention.
  • The system fully integrates into the EV4
    viewer environment.
  • The system measure the height of
    components with an accuracy of less than
    0.01 mm.
  • Very high speed test, approximately 2
    seconds for a medium size box.
