Component Height Test

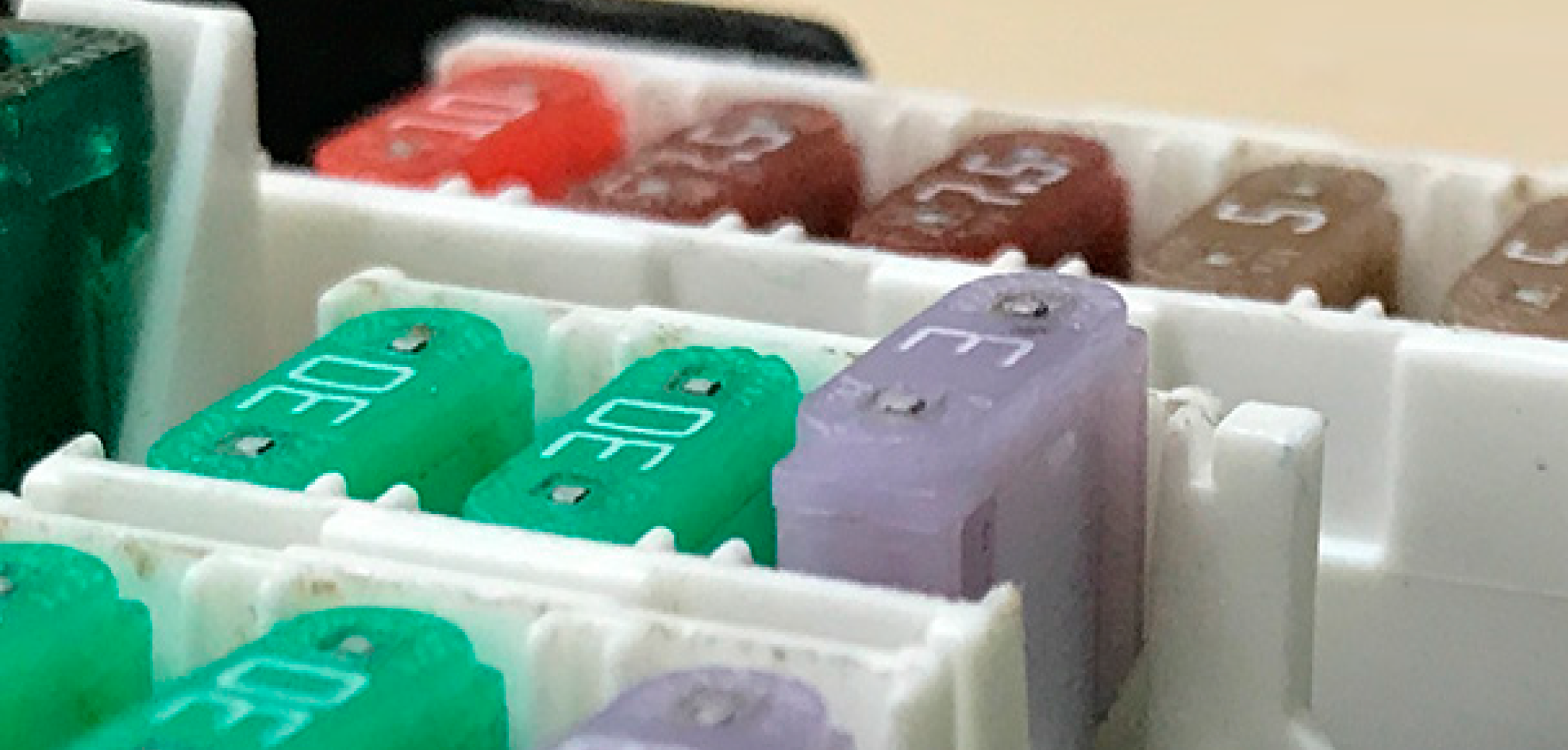

CHT is a system for verifying the correct insertion of the components of a fuse box, measuring the height of the elements with laser system.

Software
Software

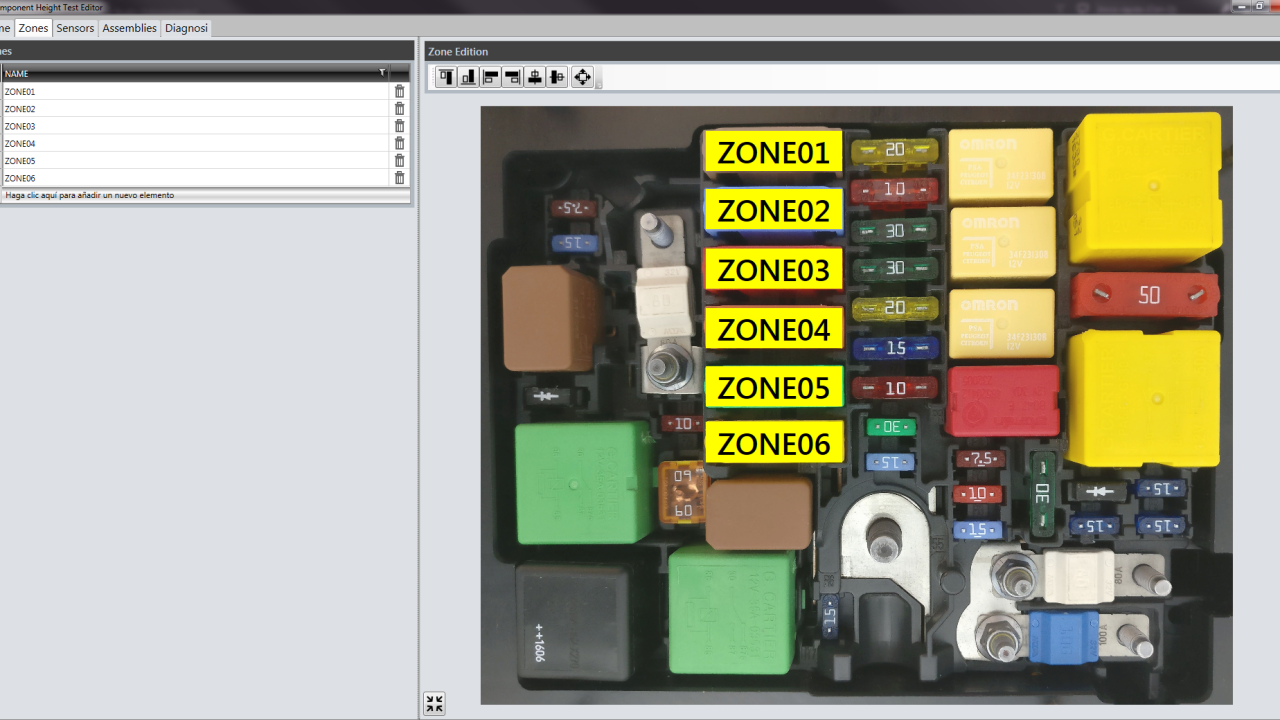

CHT comes with two applications: one for
editing and the other for carrying out the
test. The editing and test environments are
completely graphic.


The system fully integrates into the EV4
viewer environment; a second CHT test can be
requested if during the viewing test any of the
components have been manipulated.


Register of the height of each component in
correct and incorrect test, integrated with the
register of data of the viewing test.


Simple programming and very fast calibration of
the system.


Integrates fully into the HETOS system.

Hardware
Hardware

The CHT hardware is based on a 3D modeling
system through a laser reading.


With the 3D model of the fusebox, the system
test the different components by height and
relief, measuring its height with an accuracy of
less than 0.05 mm.


Small and compact, it can be mounted on a
harness test board or on a structure together
with an EV4 Vision system. Can be adapted for
any size of fusebox.


The Component Height Test can work together
with the EV4 Vision. It is a way to validate the
good insertion of the elements tested by EV4
vision.


The system is robust against small deformations
of the fuse box.


Very high speed test, approximately 2 seconds
for a medium size box.
